Learn More480
Conveyor
Quickly and easily deliver quantities of bulk material and streamline your operations processes with the Rotochopper 480 Conveyor.
Featured Specifications
UP TO 74 HP
36,300lbs
Diesel Engine
The Rotochopper 480 conveyor is an 80′ tracked stacker with twin drives and a 48″ belt for heavy-duty applications. Available with radial and non-radial option.
-
Advantages
Track Mobility
Tracks make moving the conveyor around your work space easy with the radio control.
Boomerang Rear Lift
Lends itself to additional versatility when loading without sacrificing discharge height.
Multiple Applications
Use the 480 conveyor to move a variety of materials including mulch, compost, aggregates and waste materials.
-
Exclusive Features
Mulch Hopper with Auger
Optional mulch hopper with high-speed auger helps break up the materials you are conveying.
Auto Radial Option
Control the optional 180 degree radial with a timer, sensors or radio control options.
Twin Drives
Provide additional power and torque to convey heavy feedstocks like sand, dirt and gravel.
-
Videos

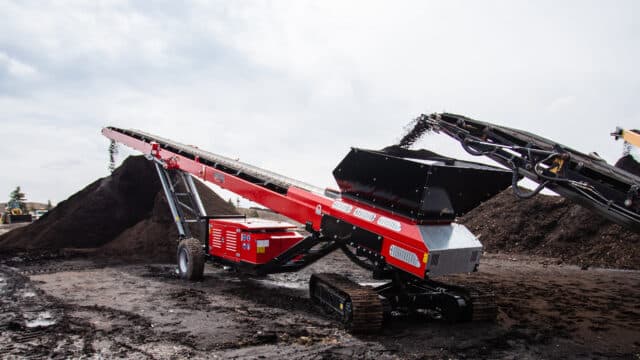

480R Tracked Radial Stacking Conveyor
Simplify your grinding operation with the Rotochopper’s 480R Tracked Radial Conveyor. With a 80′ radial tracked stacker with a 48″ wide belt, the 480R automatically oscillates to blend your product pile. Learn more about how the 480R can help mitigate the need for additional handling equipment.
Subscribe to our YouTube ChannelAdditional Videos
- Industries
-
Additional Specs
Dimensions
Transport Dimensions
- Length – 39′ 6″ – 54′ 10″
- Height – 8′ 6″ – 8′ 9″
- Width – 7′ 5″ – 7′ 9″
Working Dimensions
- Length – 80′
- Height – 33′ – 37′ 8″
- Width – 7′ 4″
Power Supply
- 74 hp diesel engine
- 66 gal fuel tank
- 105 gal hydraulic oil tank
Options
- Radial
- Dump hopper with auger
"The track system set up in the back of the conveyor was one of the reasons we choose it. It makes it more versatile in small spaces."
— James Jutrzonka, Blue Ribbon Orgnics
