Learn MoreMT Series
Trommel Screens
Rotochopper’s MT series tracked trommels have been designed to deliver maximum productivity and superior screening efficiency from a compact footprint. Designed with durability, efficiency and simplicity in mind, the MT series trommels provide the optimal screening solution for a variety of applications, including compost, organics, soil, mulch, biomass, and waste.
Featured Specifications
The MT175 and MT237 trommel screens maximize set up and operation efficiency with features including hydraulically folding conveyors, tracked configuration, and drum angle adjustment capabilities. The large hopper and screening area offer the production specifications your operation needs.
-
Advantages
Large Screening Area
Over 300 square feet of screening area provides optimal separation capabilities.
Quick Change Drum
Four powered drive rollers support quick and easy drum changes to accommodate various screening sizes and requirements.
Hydraulically Adjustable Screen Angle
The drum angle can be adjusted to fit each use case through hydraulic controls.
Hydraulic Folding Conveyors
Reduce material handling. Both over and fines conveyors are hydraulic folding, simplifying the process of set up, conveyor adjustments and transport preparation.
Foldable Hopper Extensions
The foldable hopper extensions provide additional configuration and accommodation options based on feeding requirements.
Tracked Configuration
Easily move the machine around yards with tight spaces or track the machine to your material for screening with the benefits of tracked mobility and maneuverability.
-
Exclusive Features
Easy to Use Controls
The digital operator interface provides users with easy to access and monitor engine parameters and fault code data.
RotoLink® Monitoring System
Monitor and adjust critical settings on your trommel screen with Rotochopper customer service in real-time using the RotoLink® monitoring system from anywhere in the world.
-
Videos
Rotochopper MT175 Trommel Screen Overview: A Conversation Between Shota Austin and Preston McIntyre
Rotochopper customer, Shota Austin, Director of Tank’s Green Stuff shares with us what material they screen through their MT175 and the different features of the trommel screen they find most beneficial for their organic compost and landscape business.
“As a smaller machine and more compact, it has allowed us to be more versatile. We can easily load this on a flat bed and haul it to another facility to run other material. Just in terms of moving around the yard it’s just been a really great machine.” -Shota Austin, Tank’s Green Stuff
Subscribe to our YouTube ChannelAdditional Videos
- Rotochopper MT206 Trommel Screen
- Getting to Know the MT 175 Trommel Screen
- Rotochopper MT 237 Trommel Screen
- MT 175 Trommel Screen Coloring Mulch
- MT 175 Trommel Screen Drum Change
- Rotochopper MT175 Trommel Screen Overview: A Conversation Between Shota Austin and Preston McIntyre
- Our Customers Say It Best: with Shota Austin
- Rotochopper MT175 Trommel Screen
- Industries
-
Additional Specs
Transport Dimensions
MT 175
- Length – 39′
- Width – 7′ 6″
- Height – 11′ 5″
- Weight – 37,500 lbs.
MT 206
- Length – 38′ 1″
- Width – 9′ 10″
- Height – 11′ 1″
- Weight – 66,000 lbs.
MT 237
- Length – 53′
- Width – 9′ 6″
- Height – 12′ 4″
- Weight – 64,000 lbs.
Power Supply
- 135 hp diesel engine
- 71 gallon fuel supply
Options
- RotoLink® Remote Monitoring System
- PAS grind & color system (colorizer) (MT 175 only)
- Wireless remote
Screen & Color

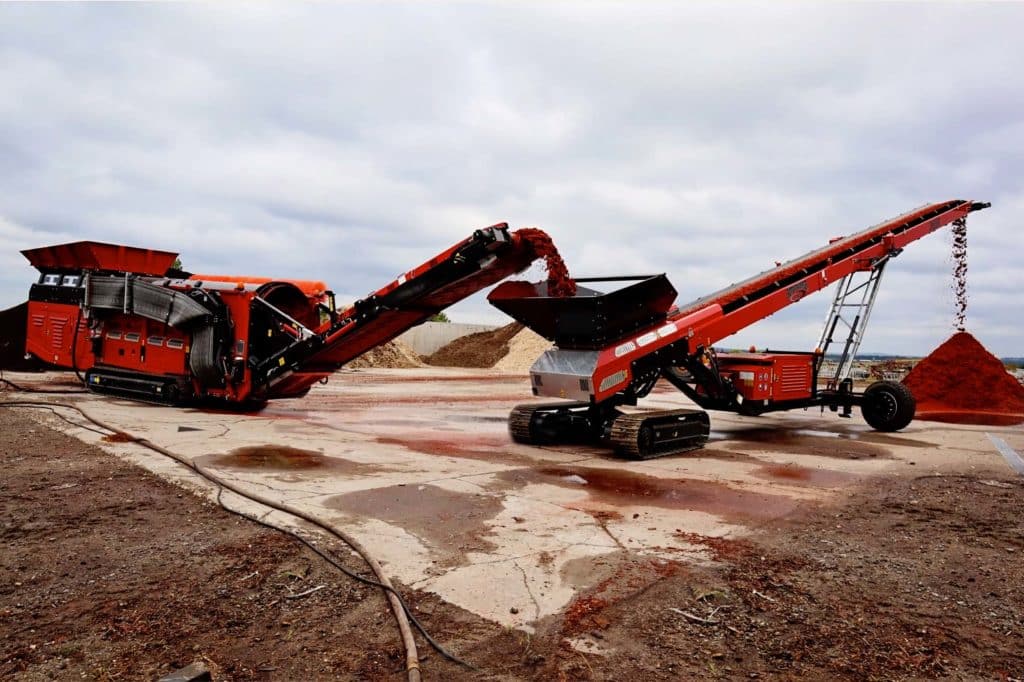

Diversify your operation by adding a colorizer to your MT 175 Trommel Screen. Rotochopper has used their extensive knowledge and expertise in coloring to manufacture a self-powered, self-contained colorizer for the trommel screen. The all-in-one solution allows you to move from screening your product to coloring mulch by changing from a screening drum to a solid drum for coloring mulch. Efficiently produce over 275 yards per hour of consistent, vibrant colored mulch at the lowest cost per yard.
Trommel Screen Drum Change
Changing the drum on the Rotochopper MT Series Trommel Screen to either another size screening drum or to the solid drum for coloring can be done with the proper equipment by lifting the drum out of the trommel screen and then lowering the new drum into the trommel. The entire process can be easily accomplished in under 15 minutes. Watch the process in this video.
Watch the MT 175 Trommel Screen color mulch.
